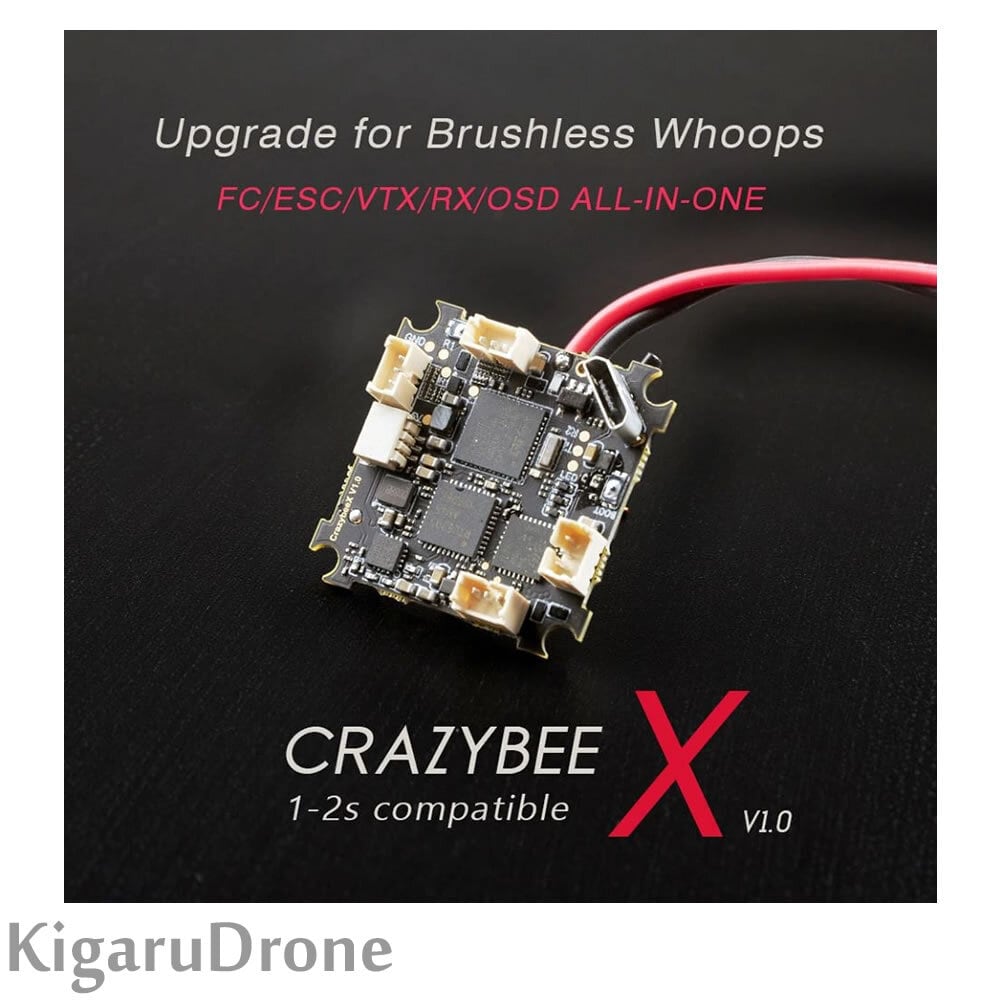

Happymodel CrazybeeX V2.2 4in1 AIO Flight Controller Built-in ESC/VTX/SPI RX/OSD 1-2s ESC/VTX/レシーバー内蔵フライトコントローラー
Happymodel CrazybeeX V2.2 4in1 AIO Flight Controller Built-in ESC/VTX/SPI RX/OSD 1-2s ESC/VTX/レシーバー内蔵フライトコントローラー
¥5,990
SOLD OUT
CrazybeeX V2.2 4in1 AIO Flight Controller Built-in ESC/VTX/SPI RX/OSD 1-2s
内蔵レシーバーRX Frsky / SFHSS
※1-2S対応ESC/VTX/レシーバー内蔵の超軽量FCです。
※系統図は付けますがマニュアルは付いていません。
※5種類から選択してください。（販売のMobula6機体のdumpを入れます。）
V2.2 2S Frsky（Crux3）
V2.2 2S S-FHSS（Crux3）
V2.2 2S メーカー出荷のまま（ Frsky） を選択してください。
Specificaiton:
Brand Name: Happymodel
Item Name: Crazybee F4 Lite 1S Flight Controller AIO ESC Receiver & 25mW VTX
Flight Controller
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)Sensor: MPU-6000(SPI connection)Board size: 28.5 * 28.5MMPower supply: 1S-2S battery input (DC 2.9V-8.7V)Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 readyBuilt-in Betaflight OSD(SPI Control)Built-in 5.8G VTXBuilt-in SPI Frsky receiver support D8/D16Built-in 5V 1A BECBuilt-in voltage detection
Firmware target: CRAZYBEEF4FR
Onboard 4in1 ESC
MCU upgraded to EFM8BB21Power supply: 1-2S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)Support BLHeliSuite programmableFactory firmware: S_H_90_REV16_7.HEXDefault protocol: DSHOT600
Onboard Frsky SPI receiver
SPI BUS receiver Frsky D8/D16 compatibleSupport Frsky_X_LBT(EU-LBT), Futaba S-FHSS (Need Betaflight 4.0.5 firmware or latest)
Channels: 8ch/16chFailsafe supportNo ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
Onboard 5.8g VTX
Output power: 25mw Frequency: 40CHInput voltage: 3.3V 5.5VCurrent consumption: 300mA(type)Frequency: 5.8GHz 5bands 40 channelsWith Race band
Smartaudio ready
Default vtx_power should set to be “2”
Onboard Voltage and Current detector
Voltage Meter scale “110”
Amperage Mete scale “1175”
Package included:
1x Happymodel CrazybeeX 4in1 AIO Flight Controller
パッケージ：
F4FC 1枚
系統図
