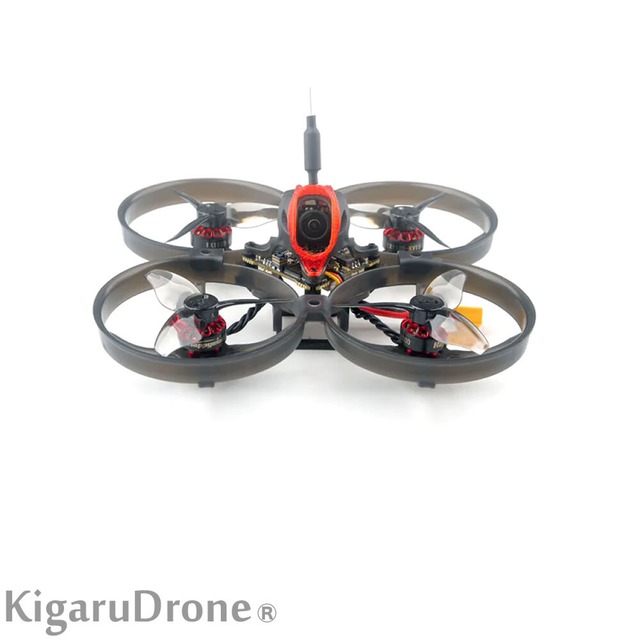

【玄人向け】【ELRSV3】Happymodel Mobula8 1-2S 85mm Brushless Whoop BNF XT30(ELRSV3)
【ELRS】Happymodel Mobula8 1S 75mm Brushless Whoop BNF (ELRS) です。
※ELRS V3になります。
※バッテリーは付属しません。
基本は安定飛行で初心者からプロまで楽しんでいただけます。
超軽量のVTX・レシーバー内蔵の最新FCに
キャノピー・スペアプロペラ 付属します。
※バッテリーは付属しません。
※こちらで設定して動作確認してから送ります。
バインド方法
FCにバインドボタンがありません。Betaflight10.8以降なら受信機タブの
バインドを押すとFC裏の赤LEDが点滅します。
プロポをELRSバインド状態にします。
赤LED点灯でバインド完了です。
ベータフライト10.8以上に接続しMODE設定でスイッチの割当(ARMスイッチ/Modeスイッチ等)デフォルトではARMスイッチ(AUX1) Modeスイッチ(AUX2)になっています。
プロポのサブトリムやエンドポイントを調整してください。
ベータフライトに接続の注意
※VTX内蔵のFCなのでかなり熱を持ちます。なるべく短時間で設定するようにしてください。VTXやFCが壊れる場合があります。
※BetaFright Configfator 10.8以上を使用してください。
※FPVフライトのためにはアマチュア無線技士免許及び送信機の開設申請が必要です。
Powerful Performance and Compact Design
The Happymodel Mobula8 is a micro FPV whoop drone that delivers an exhilarating flying experience. With its 1-2S capability and lightweight 85mm frame, this drone offers both power and agility., the Mobula8 is designed to provide endless fun.
High-Performance EX1103 KV11000 Motors
Equipped with the impressive EX1103 KV11000 motors, the Happymodel Mobula8 offers exceptional speed and responsiveness. These motors ensure smooth and precise control, allowing you to perform daring maneuvers and achieve thrilling flight experiences.
Features:
X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and OPENVTX
VTX Power up to 400mw
ELRS V3.0 (Default), provide firmware to support ELRS V3.0
EX1103 KV11000 motors
CaddxFPV Ant FPV camera
Smooth and powerful
Compatible for 1S-2S Lipo/LIHV battery
Recommend 2S 450mah/550mah/650mah battery (Not include)
GNB 450mAh 2S HV LiPo Battery 7.6V 80/160C XT30 Plug
GAONENG/GNB 530mah 2S 7.6V HV 90C LiPo Battery XT30 Plug
Specifications for happymodel mobula8:
Brand Name: Happymodel
Item Name: Mobula 8 Micro FPV 1-2S whoop drone
Wheelbase: 85mm
Size: 120mm*120mm*50mm
Weight: 43g
Receiver option:
2.4G ELRS SPI (Support ELRS v3.0, provide firmware could compatible with elrs v3.0)
SPI Frsky D8/D16 not compatible with EMAX E6 radio
SPI Flysky AFHDS2A
Spare parts specifications:
Motor
Mode: EX1103 KV11000
Configu-ration: 9N12P
Stator Diamter: 11mm
Stator Length:3mm
Shaft Diameter: Φ1.5mm
Motor Dimension (Dia.*Len):Φ13.5mm*15.5mm
Weight(g): 3.8g
No.of Cells(Lipo): 1-2S
Propellers
Weight: 0.88g
Material: PC
Pitch: 2.3inch
Props Dia: 52.17mm
Center Thickness: 5mm
Center Hole Dia: 1.5mm
Flight controller
X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR
X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver Target: CRAZYBEEF4FS
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: ICM20689 or ICM42688P(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A
Built-in voltage detection
Built-in current sensor
Onboard 4in1 ESC
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Firmware target: Z_H_30
Default protocol: DSHOT300
Support Bluejay firmware
Onboard SPI ExpressLRS 2.4GHz Receiver
Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash separately ExpressLRS firmware
Could flash FC firmware to support ExpressLRS v3.0 TX module
Onboard SPI Frsky D8/D16 receiver Version
SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8/D16 modelChannels: 8ch/16ch
No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support
Onboard SPI Flysky receiver Version
SPI BUS receiver
Protocol: AFHDS-2A
Channels: 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 200meter
Failsafe support
Onboard 5.8g OPENVTX
Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
Caddx ANT 1200tvl camera
Image Sensor: 1/3″ CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
IMAGE: 16:9 or 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio : >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm
Min. Illumination: 0.001Lux@F1.2
Auto Gain Control: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Weight: 2g (N.W.)
Package Included:
1X Happymodel Mobula8 Frame
Option1: X12 ELRS V2.1 flight controller built-in SPI ELRS 2.4G receiver
Option2: X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver
Option3: X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver
4X EX1103 KV11000 brushless motor
1X Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw)
1X Caddx ANT 1200TVL Camera
1X Onboard 5.8G Openvtx 0mw~400mw VTX
1X Canopy for 14mmx14mm camera
1X Screw driver
パッケージ内容
Mobula8 BNF
Props 1セット、
日本語マニュアル(作成中)
VTX系統図
¥21,500.
