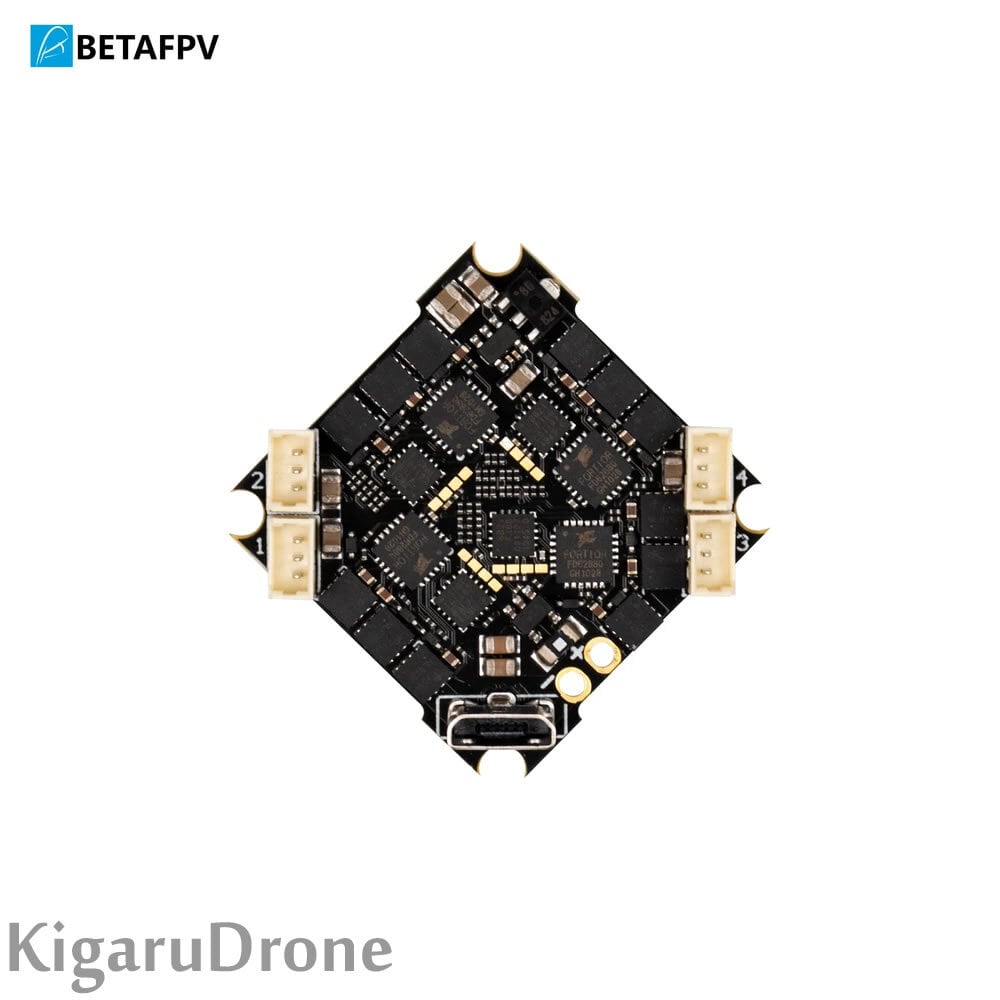

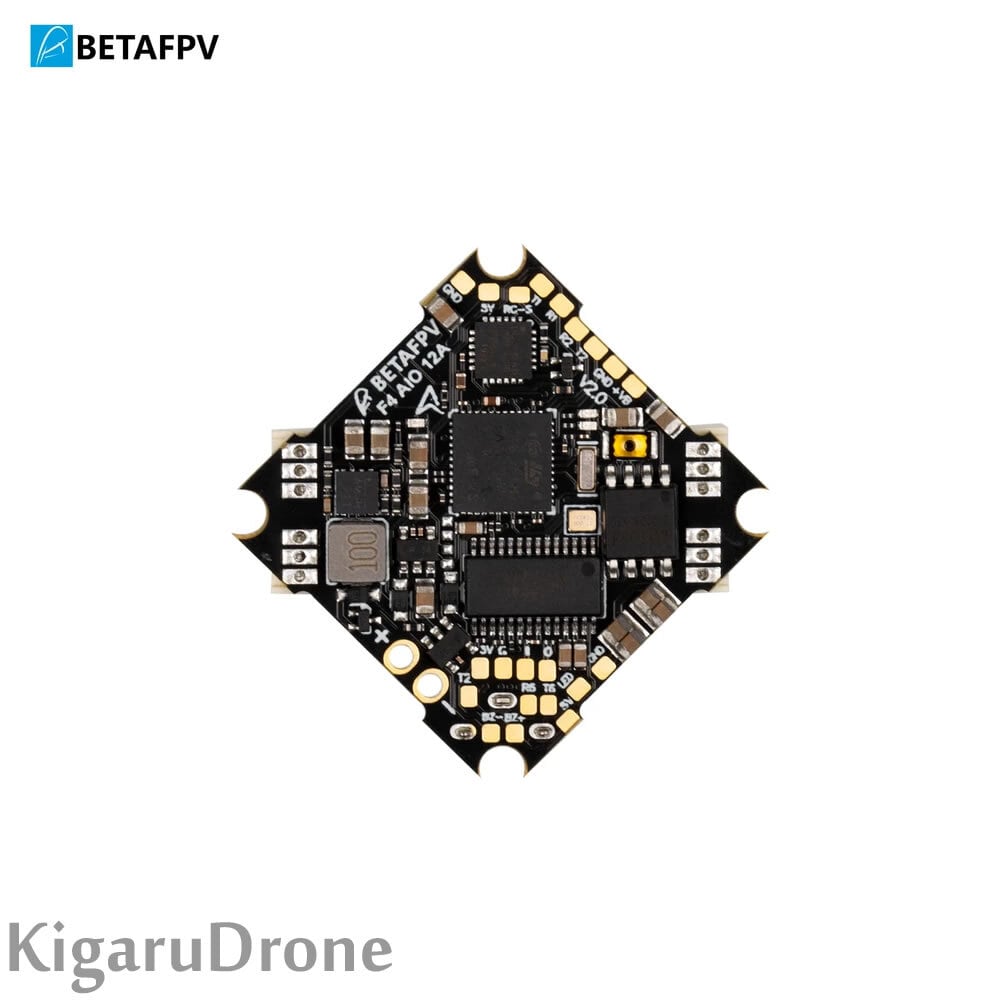

【Beta75X/85X純正FC】 BetaFPV F4 2-4S AIO Brushless Flight Controller 12A V2 (BLHeli_S)XT30
【Beta75X/85X純正FC】 BetaFPV F4 2-4S AIO Brushless Flight Controller 12A V2 (BLHeli_S)XT30
¥5,000
SOLD OUT
【Beta75X/85X純正FC】F4 2-4S AIO Brushless Flight Controller 12A V2 (BLHeli_S) ※XT30コネクターです。
※レシーバーは付いていません。
※マニュアルは付いていませんのでメーカーのHPをご参照下さい。
https://betafpv.com/collections/brushless-flight-controller/products/f4-2-4s-aio-brushless-flight-controller-12a-blheli_s
SPECIFICATIONS OF FC
CPU: STM32F411CEU6 (100MHZ )
Six-Axis: MPU-6000 triaxial accelerometer / triaxial gyroscope (SPI connection)
Size: 26mm x 26mm, fully compatible with the all whoop drone mounting pattern, recommend the Beta65X frame and Beta75 Pro frame.
Firmware version: betaflight_matekf411rx_4.0.0 (Development Version)
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Built-in SPI Frsky D16 protocol native receiver, compatible with almost ALL Frsky FCC radios(e.g. Taranis X9D/X9D Plus/X7) or Frsky compatible transmitter module. Not compatible with Frsky LBT protocol.
Power Cable: 55mm, with 2pcs JST-PH 2.0 connector, AKA PowerWhoop connector
Weight: 4.5g
SPECIFICATIONS OF ESC
Built-in ESC with 5A continuous and peak 6A current
Power supply: 1-2S
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.HEX
Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM
仕様：
ブランド名：BetaFPV F4 2S AIO Brushless Flight Controller
モデル：Beta75X/85X

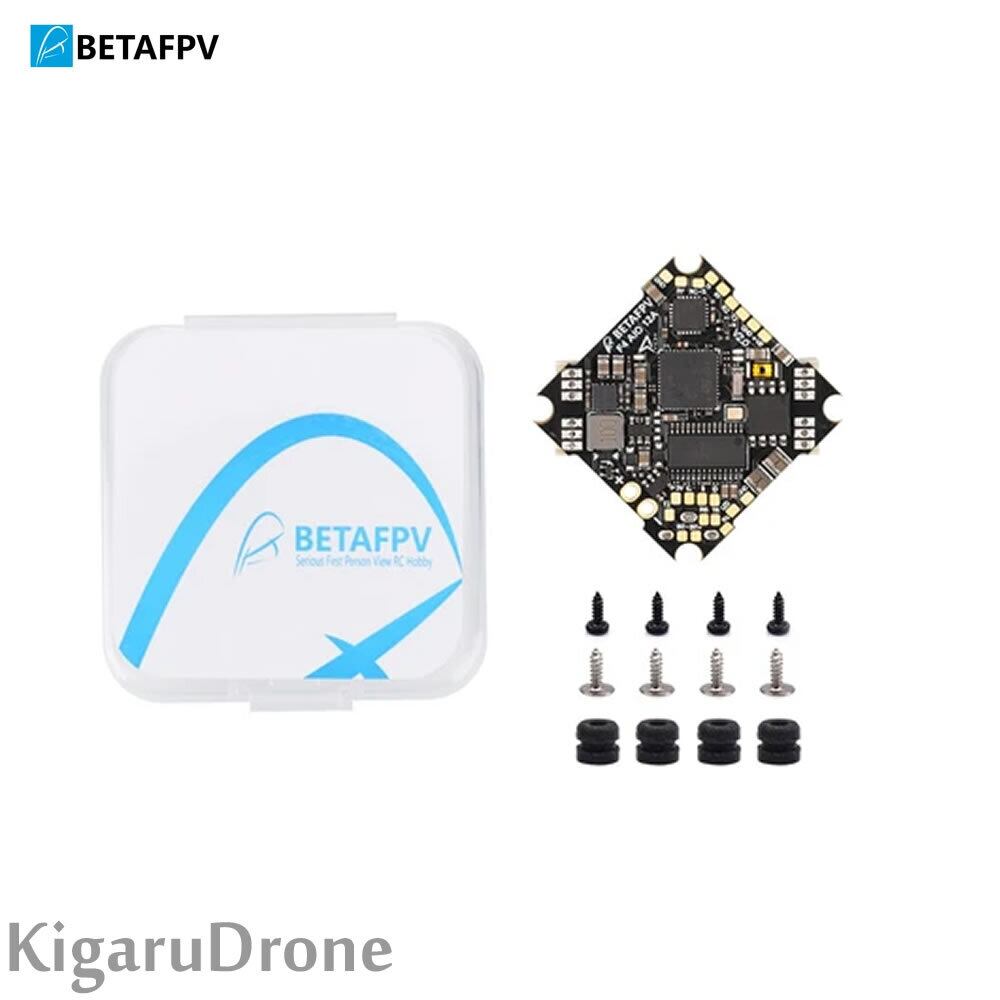

1 * F4 2-4S brushless flight controller with XT30 Plug
4 * M1.2x4mm screws
4 * M1.4x5mm screws
4 * Anti-vibration rubber dampers
※レシーバーは付いていません。
※マニュアルは付いていませんのでメーカーのHPをご参照下さい。
https://betafpv.com/collections/brushless-flight-controller/products/f4-2-4s-aio-brushless-flight-controller-12a-blheli_s
SPECIFICATIONS OF FC
CPU: STM32F411CEU6 (100MHZ )
Six-Axis: MPU-6000 triaxial accelerometer / triaxial gyroscope (SPI connection)
Size: 26mm x 26mm, fully compatible with the all whoop drone mounting pattern, recommend the Beta65X frame and Beta75 Pro frame.
Firmware version: betaflight_matekf411rx_4.0.0 (Development Version)
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Built-in SPI Frsky D16 protocol native receiver, compatible with almost ALL Frsky FCC radios(e.g. Taranis X9D/X9D Plus/X7) or Frsky compatible transmitter module. Not compatible with Frsky LBT protocol.
Power Cable: 55mm, with 2pcs JST-PH 2.0 connector, AKA PowerWhoop connector
Weight: 4.5g
SPECIFICATIONS OF ESC
Built-in ESC with 5A continuous and peak 6A current
Power supply: 1-2S
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.HEX
Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM
仕様：
ブランド名：BetaFPV F4 2S AIO Brushless Flight Controller
モデル：Beta75X/85X
1 * F4 2-4S brushless flight controller with XT30 Plug
4 * M1.2x4mm screws
4 * M1.4x5mm screws
4 * Anti-vibration rubber dampers
【Beta75X/85X純正FC】F4 2-4S AIO Brushless Flight Controller 12A V2 (BLHeli_S) ※XT30コネクターです。
※レシーバーは付いていません。
※マニュアルは付いていませんのでメーカーのHPをご参照下さい。
https://betafpv.com/collections/brushless-flight-controller/products/f4-2-4s-aio-brushless-flight-controller-12a-blheli_s
SPECIFICATIONS OF FC
CPU: STM32F411CEU6 (100MHZ )
Six-Axis: MPU-6000 triaxial accelerometer / triaxial gyroscope (SPI connection)
Size: 26mm x 26mm, fully compatible with the all whoop drone mounting pattern, recommend the Beta65X frame and Beta75 Pro frame.
Firmware version: betaflight_matekf411rx_4.0.0 (Development Version)
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Built-in SPI Frsky D16 protocol native receiver, compatible with almost ALL Frsky FCC radios(e.g. Taranis X9D/X9D Plus/X7) or Frsky compatible transmitter module. Not compatible with Frsky LBT protocol.
Power Cable: 55mm, with 2pcs JST-PH 2.0 connector, AKA PowerWhoop connector
Weight: 4.5g
SPECIFICATIONS OF ESC
Built-in ESC with 5A continuous and peak 6A current
Power supply: 1-2S
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.HEX
Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM
仕様：
ブランド名：BetaFPV F4 2S AIO Brushless Flight Controller
モデル：Beta75X/85X
1 * F4 2-4S brushless flight controller with XT30 Plug
4 * M1.2x4mm screws
4 * M1.4x5mm screws
4 * Anti-vibration rubber dampers
※レシーバーは付いていません。
※マニュアルは付いていませんのでメーカーのHPをご参照下さい。
https://betafpv.com/collections/brushless-flight-controller/products/f4-2-4s-aio-brushless-flight-controller-12a-blheli_s
SPECIFICATIONS OF FC
CPU: STM32F411CEU6 (100MHZ )
Six-Axis: MPU-6000 triaxial accelerometer / triaxial gyroscope (SPI connection)
Size: 26mm x 26mm, fully compatible with the all whoop drone mounting pattern, recommend the Beta65X frame and Beta75 Pro frame.
Firmware version: betaflight_matekf411rx_4.0.0 (Development Version)
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Built-in SPI Frsky D16 protocol native receiver, compatible with almost ALL Frsky FCC radios(e.g. Taranis X9D/X9D Plus/X7) or Frsky compatible transmitter module. Not compatible with Frsky LBT protocol.
Power Cable: 55mm, with 2pcs JST-PH 2.0 connector, AKA PowerWhoop connector
Weight: 4.5g
SPECIFICATIONS OF ESC
Built-in ESC with 5A continuous and peak 6A current
Power supply: 1-2S
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.HEX
Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM
仕様：
ブランド名：BetaFPV F4 2S AIO Brushless Flight Controller
モデル：Beta75X/85X
1 * F4 2-4S brushless flight controller with XT30 Plug
4 * M1.2x4mm screws
4 * M1.4x5mm screws
4 * Anti-vibration rubber dampers
