BetaFPV X-Knight5用 Carbon Fiber Frame V2 SET
X-Knight5用カーボンフレーム
※メーカーHP
https://betafpv.com/products/x-knight-carbon-fiber-5-frame-v2-kit
Specification
Material: T800 Carbon Fiber
Wheelbase: 200mm

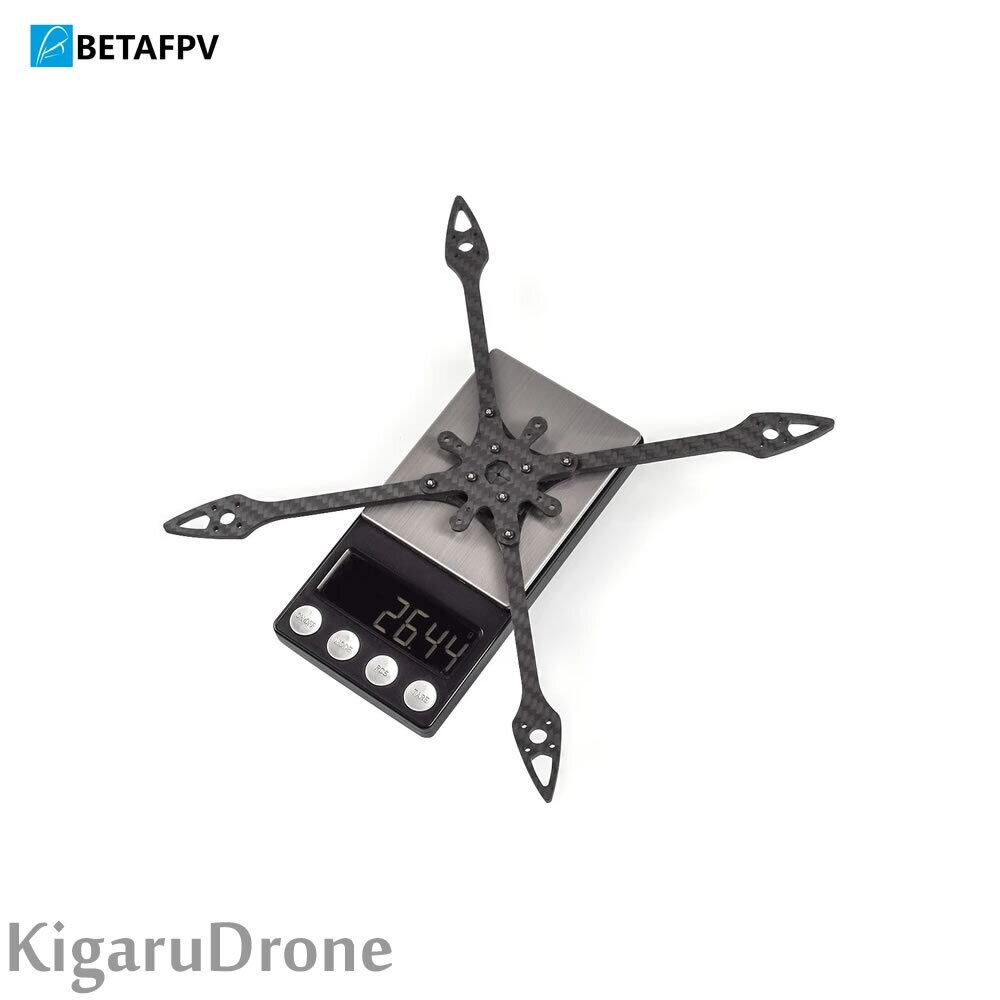

Weight: 26.44g
Frame Height: 8mm
Top plate thickness: 1.5mm
Bottom plate thickness: 1.5mm
Arm thickness: 3.5mm
Battery protected plate thickness: 1.5mm
Motor mounting hole: 12 x 12
FC mounting hole: 26.5mm x 26.5mm
Recommended Parts
Flight Controller: F4 35A AIO Brushless FC
Compatible Propellers: Gemfan 5125 3-Blade props
Battery: 550mAh 6S 75C battery
Motor: 1805 1550KV Brushless Motors / 1606 1550KV Brushless Motors
Package
1 * Top Plate
1 * Bottom Plate
4 * Arms
1 * Battery Protected Plate
8 * M2×8 Countersunk Screws
4 * M2×10 Screws
8 * M2 Nuts
8 * M2*1.85 Nuts
1 * Battery Strap
2 * Anti-slip Battery Mats
2 * 3mm Anti-impact Battery Mats
2 * 5mm Anti-impact Battery Mats
