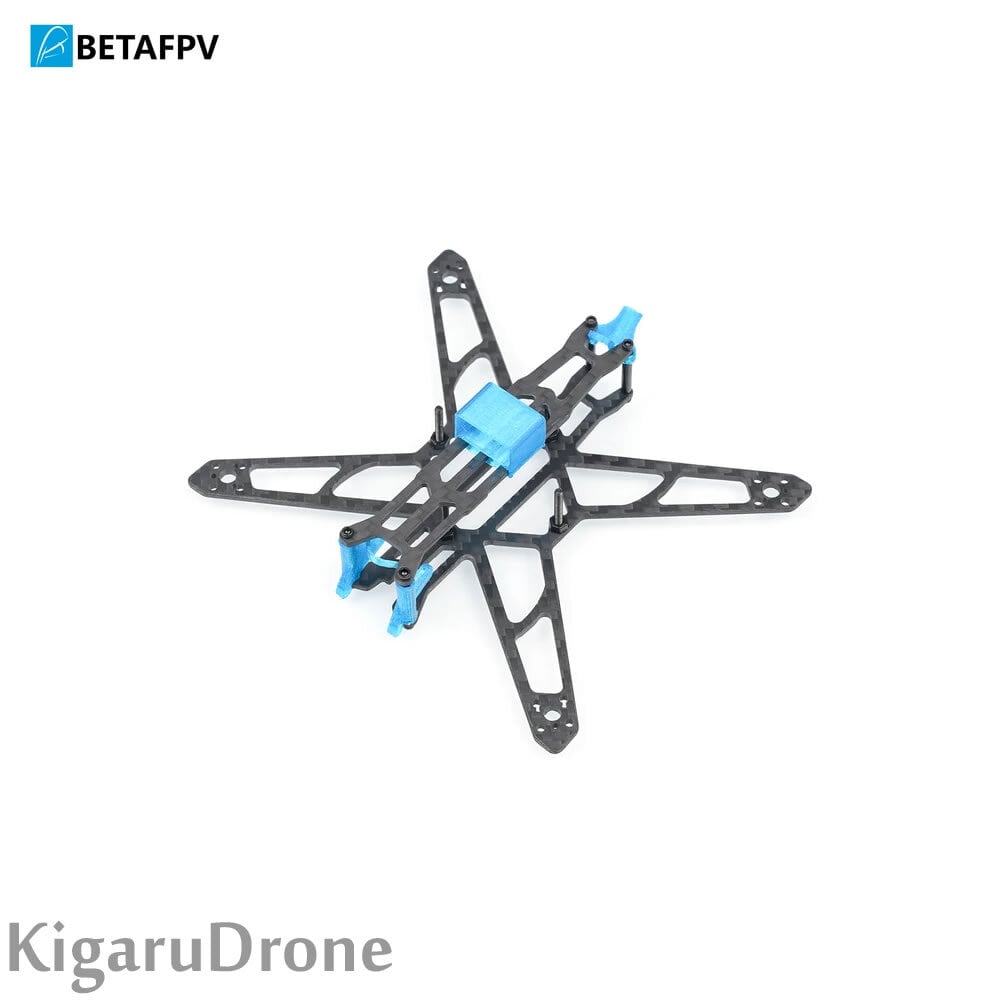

BetaFPV HX115 LR Frame Kit カーボンフレームKIT
※メーカーHP
https://betafpv.com/collections/carbon-fiber-frame/products/hx115-lr-frame-kit

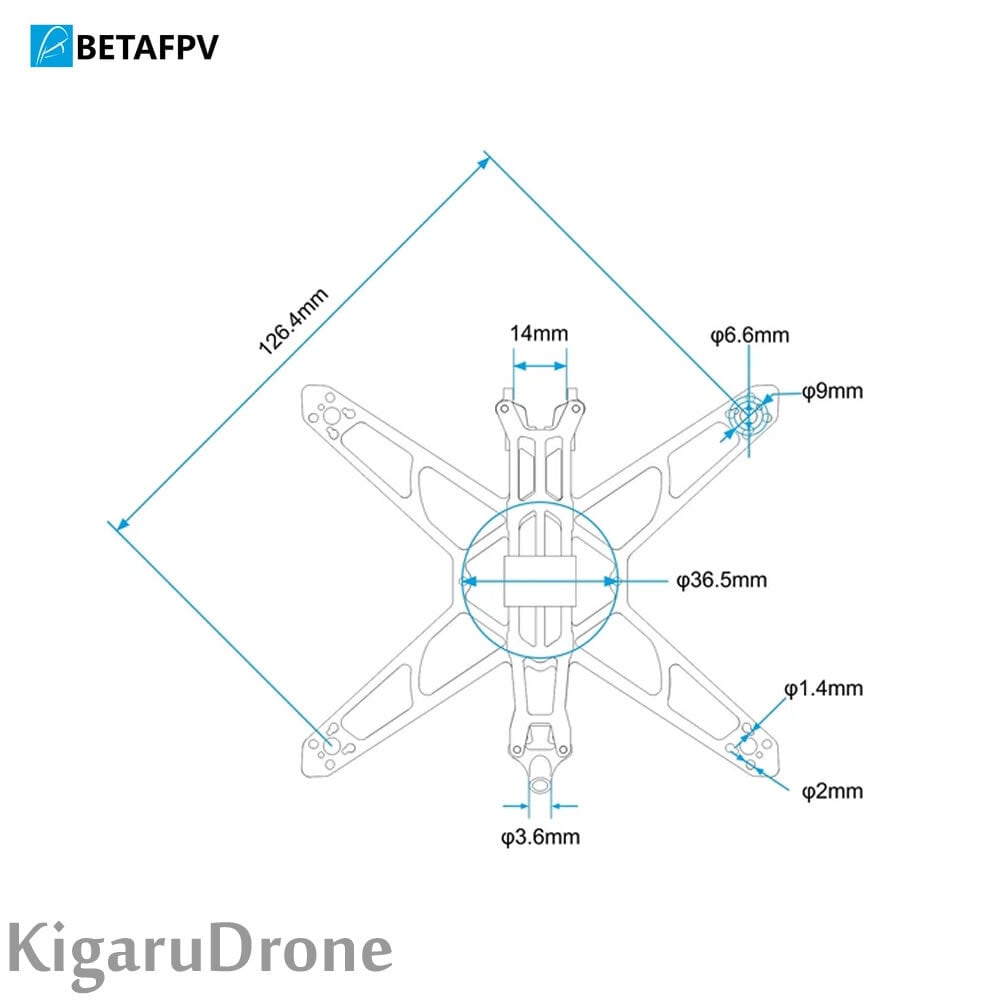

Specification
Material: T700 Carbon Fiber
Wheelbase: 126mm
Weight: 14g
Top plate thickness: 1.5mm
Bottom plate thickness: 2.0mm
Motor mounting hole (4 holes pattern): 9 x 9
Motor mounting hole (3 holes pattern): 6.6 x 6.6
FC mounting hole: 26.5mm x 26.5mm
Recommend Parts
If you want to try the popular ExpressLRS receiver version for long-range performance, highly recommend you to check the items for the ExpressLRS series.
Recommend for drones like HX115 SE Toothpick Drone / HX115 LR Toothpick Drone
Battery: BT2.0 450mAh 1S 30C Battery
Motor: 1102 18000KV motor
Propeller: HQ3020 2-blade props
Package
1 * HX115 LR frame
4 * Aluminum standoff 15mm
8 * M1.6 screws
3 TPU 3D printed parts
