※土曜・日曜・祝日の発送はありません。※10月1日より日本郵便値上げの為、送料の変更を行いました。

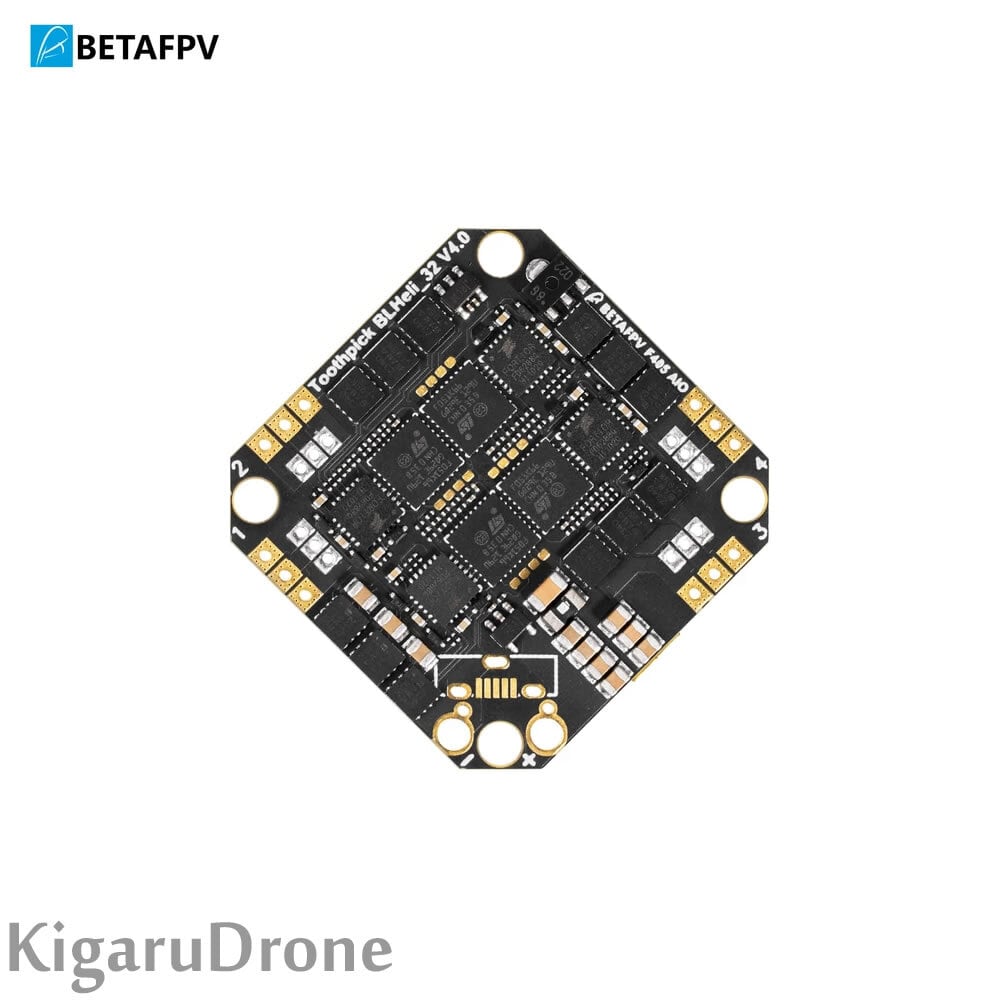

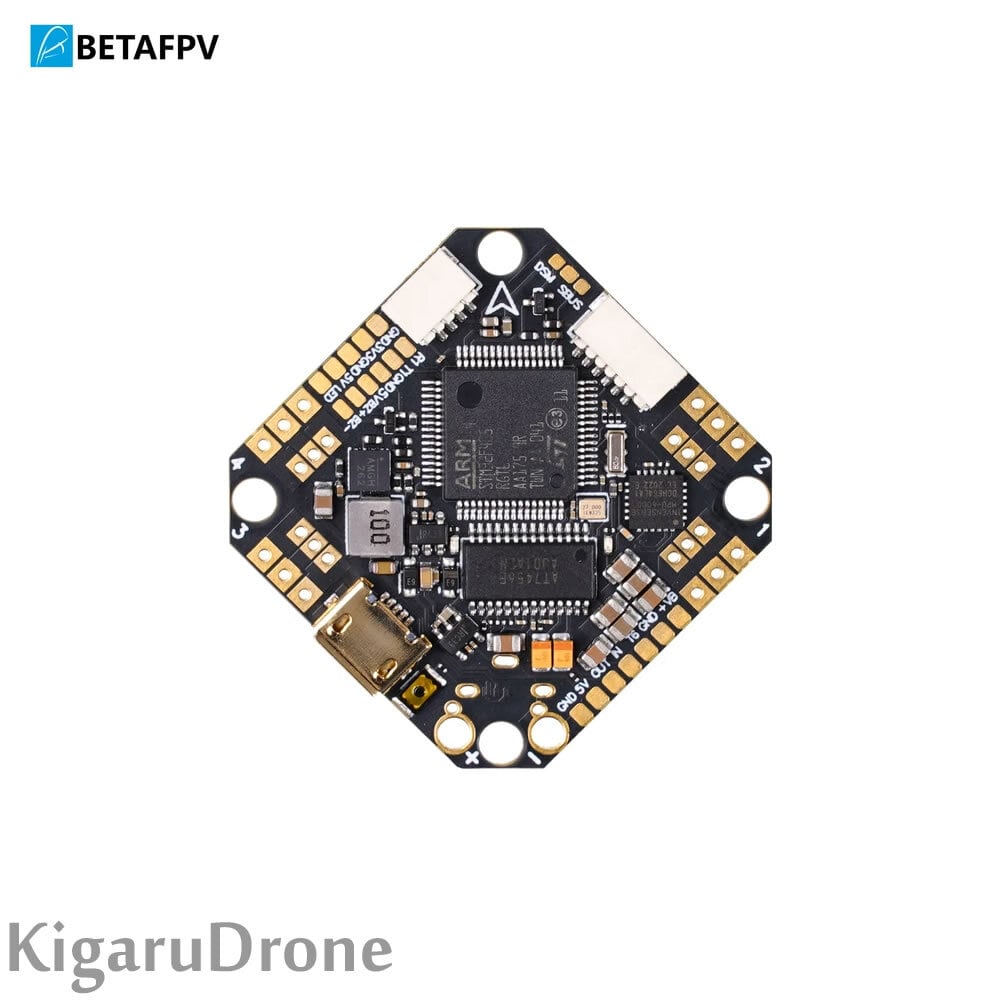

【Beta95XV3純正FC V5】 BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHeli_S) V5
【Beta95XV3純正FC V5】 BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHeli_S) V5
¥10,800
SOLD OUT
【Beta95XV3純正FC V4】 BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 ※XT30コネクターです。
※レシーバーは付いていません。
※マニュアルは付いていませんのでメーカーのHPをご参照下さい。
https://betafpv.com/collections/brushless-flight-controller/products/toothpick-f405-2-4s-aio-brushless-flight-controller-20a-blheli_32-v4
SSpecifications of FC
CPU: STM32F405RGT6
Six-Axis: MPU6000
Size: 26mm x 26mm, whoop mounting pattern
Firmware version: Batefight-BETAFPV405-4.2.X
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver
Connecter: XT30, it also can be changed to XT60 if pilots needs.
Weight: 5.76g
Specifications of ESC
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300，Dshot600
Input voltage: 2S-4S Lipo
Continuous current: 20A
Peak current: 22A
Firmware: BLHELI-32
仕様：
ブランド名：BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A
モデル：Beta95X V3
Package
1 * Toothpick F405 20A AIO FC V4
1 * Cable Pigtail (XT30)
4 * M2x10mm screws
4 * M2 nuts
4 * Anti-vibration rubber dampers
4 * Motor Pluggable Pins
1 * 6-Pin Connector for Digital VTX
1 * 4-Pin Connector for Rx
※レシーバーは付いていません。
※マニュアルは付いていませんのでメーカーのHPをご参照下さい。
https://betafpv.com/collections/brushless-flight-controller/products/toothpick-f405-2-4s-aio-brushless-flight-controller-20a-blheli_32-v4
SSpecifications of FC
CPU: STM32F405RGT6
Six-Axis: MPU6000
Size: 26mm x 26mm, whoop mounting pattern
Firmware version: Batefight-BETAFPV405-4.2.X
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver
Connecter: XT30, it also can be changed to XT60 if pilots needs.
Weight: 5.76g
Specifications of ESC
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300，Dshot600
Input voltage: 2S-4S Lipo
Continuous current: 20A
Peak current: 22A
Firmware: BLHELI-32
仕様：
ブランド名：BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A
モデル：Beta95X V3
Package
1 * Toothpick F405 20A AIO FC V4
1 * Cable Pigtail (XT30)
4 * M2x10mm screws
4 * M2 nuts
4 * Anti-vibration rubber dampers
4 * Motor Pluggable Pins
1 * 6-Pin Connector for Digital VTX
1 * 4-Pin Connector for Rx
【Beta95XV3純正FC V4】 BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 ※XT30コネクターです。
※レシーバーは付いていません。
※マニュアルは付いていませんのでメーカーのHPをご参照下さい。
https://betafpv.com/collections/brushless-flight-controller/products/toothpick-f405-2-4s-aio-brushless-flight-controller-20a-blheli_32-v4
SSpecifications of FC
CPU: STM32F405RGT6
Six-Axis: MPU6000
Size: 26mm x 26mm, whoop mounting pattern
Firmware version: Batefight-BETAFPV405-4.2.X
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver
Connecter: XT30, it also can be changed to XT60 if pilots needs.
Weight: 5.76g
Specifications of ESC
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300，Dshot600
Input voltage: 2S-4S Lipo
Continuous current: 20A
Peak current: 22A
Firmware: BLHELI-32
仕様：
ブランド名：BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A
モデル：Beta95X V3
Package
1 * Toothpick F405 20A AIO FC V4
1 * Cable Pigtail (XT30)
4 * M2x10mm screws
4 * M2 nuts
4 * Anti-vibration rubber dampers
4 * Motor Pluggable Pins
1 * 6-Pin Connector for Digital VTX
1 * 4-Pin Connector for Rx
※レシーバーは付いていません。
※マニュアルは付いていませんのでメーカーのHPをご参照下さい。
https://betafpv.com/collections/brushless-flight-controller/products/toothpick-f405-2-4s-aio-brushless-flight-controller-20a-blheli_32-v4
SSpecifications of FC
CPU: STM32F405RGT6
Six-Axis: MPU6000
Size: 26mm x 26mm, whoop mounting pattern
Firmware version: Batefight-BETAFPV405-4.2.X
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver
Connecter: XT30, it also can be changed to XT60 if pilots needs.
Weight: 5.76g
Specifications of ESC
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300，Dshot600
Input voltage: 2S-4S Lipo
Continuous current: 20A
Peak current: 22A
Firmware: BLHELI-32
仕様：
ブランド名：BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A
モデル：Beta95X V3
Package
1 * Toothpick F405 20A AIO FC V4
1 * Cable Pigtail (XT30)
4 * M2x10mm screws
4 * M2 nuts
4 * Anti-vibration rubber dampers
4 * Motor Pluggable Pins
1 * 6-Pin Connector for Digital VTX
1 * 4-Pin Connector for Rx
ショップの評価
【Beta95XV3純正FC V4】 BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A (BLHELI_32) V4 ※XT30コネクターです。
※レシーバーは付いていません。
※マニュアルは付いていませんのでメーカーのHPをご参照下さい。
https://betafpv.com/collections/brushless-flight-controller/products/toothpick-f405-2-4s-aio-brushless-flight-controller-20a-blheli_32-v4
SSpecifications of FC
CPU: STM32F405RGT6
Six-Axis: MPU6000
Size: 26mm x 26mm, whoop mounting pattern
Firmware version: Batefight-BETAFPV405-4.2.X
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver
Connecter: XT30, it also can be changed to XT60 if pilots needs.
Weight: 5.76g
Specifications of ESC
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300，Dshot600
Input voltage: 2S-4S Lipo
Continuous current: 20A
Peak current: 22A
Firmware: BLHELI-32
仕様：
ブランド名：BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A
モデル：Beta95X V3
Package
1 * Toothpick F405 20A AIO FC V4
1 * Cable Pigtail (XT30)
4 * M2x10mm screws
4 * M2 nuts
4 * Anti-vibration rubber dampers
4 * Motor Pluggable Pins
1 * 6-Pin Connector for Digital VTX
1 * 4-Pin Connector for Rx
※レシーバーは付いていません。
※マニュアルは付いていませんのでメーカーのHPをご参照下さい。
https://betafpv.com/collections/brushless-flight-controller/products/toothpick-f405-2-4s-aio-brushless-flight-controller-20a-blheli_32-v4
SSpecifications of FC
CPU: STM32F405RGT6
Six-Axis: MPU6000
Size: 26mm x 26mm, whoop mounting pattern
Firmware version: Batefight-BETAFPV405-4.2.X
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver
Connecter: XT30, it also can be changed to XT60 if pilots needs.
Weight: 5.76g
Specifications of ESC
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300，Dshot600
Input voltage: 2S-4S Lipo
Continuous current: 20A
Peak current: 22A
Firmware: BLHELI-32
仕様：
ブランド名：BetaFPV Toothpick F405 2-4S AIO Brushless Flight Controller 20A
モデル：Beta95X V3
Package
1 * Toothpick F405 20A AIO FC V4
1 * Cable Pigtail (XT30)
4 * M2x10mm screws
4 * M2 nuts
4 * Anti-vibration rubber dampers
4 * Motor Pluggable Pins
1 * 6-Pin Connector for Digital VTX
1 * 4-Pin Connector for Rx
