【訳あり】【最新RXV3.0 FC】BetaFPV Meteor75 Pro (Frsky/Futaba) 最新FC RXV3.0をこちらで搭載した機体です。Meteor65V2をFCだけ交換して初期設定しています。
※最新モデルではありません。
※BT2.0バッテリーチャージャーUSBとUSBケーブルは付属しません。
BetaFPV F4 1S 5A AIO Brushless Flight Controller 2022 (Frsky / Futaba RX) 参考ページ
https://shop.kigarudrone.com/items/69109198
※現在ファームアップはしないようにお願いします。
※この製品は日本語マニュアルもなくかなり設定が難しいので【玄人向け】とさせていただきます。BetaFPVサイトで理解できる方のみご購入下さい。
40mmプロペラと2.4G、350mWのVTXでマイクロなのに長距離フライト可能
75サイズの1セルながら屋内および屋外でもフライト可能。
新型フレームに回転数を19500kvに下げ、フライト時間UPとトルクをアップ
※BT1S450mAhバッテリー2個付
Specification

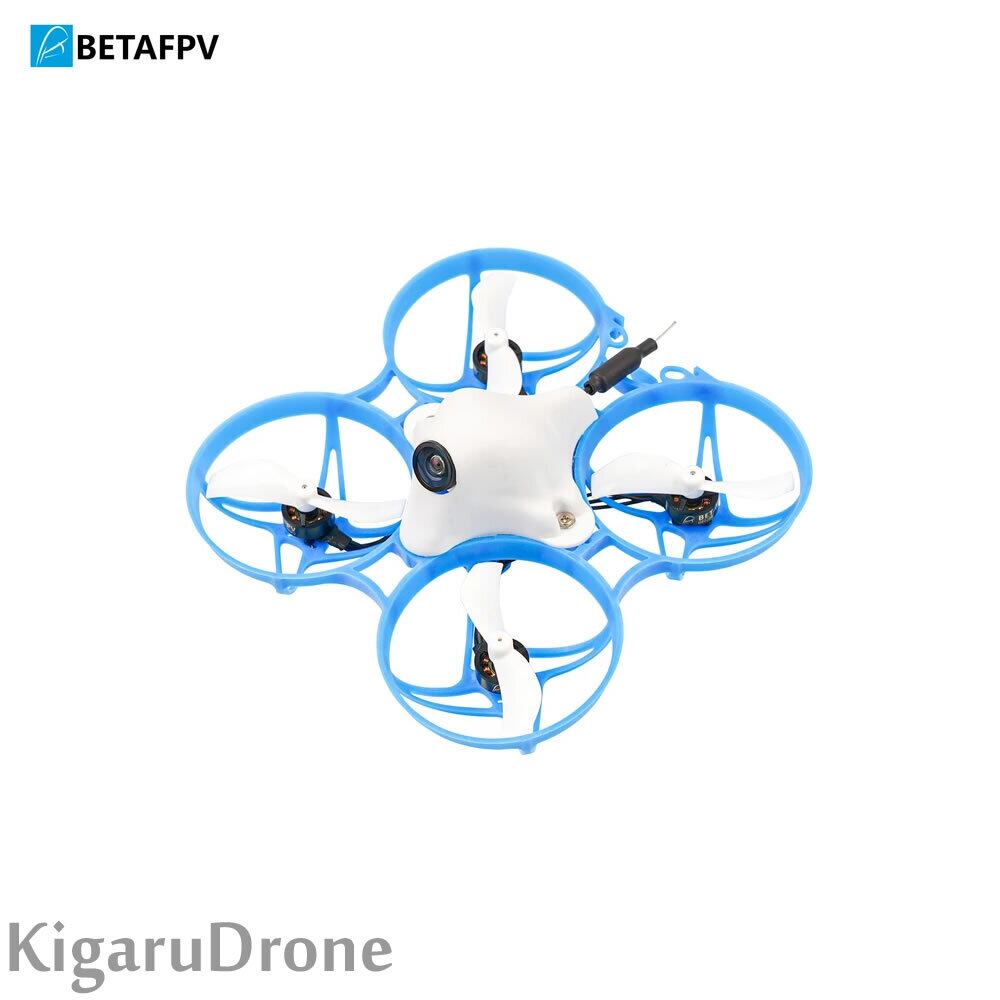

Item: Meteor75 Brushless Whoop Quadcopter
FC&ESC: F4 1S AIO FC / F4 1S 5A FC (ELRS 2.4G)
Frame: Meteor75 Frame
Motors: 1102 18000KV motor / 0802SE 19500KV Motor (only for ELRS 2.4G version)
Props: 40mm 3-Blade Propellers (1.5mm Shaft) / 40mm 2-Blade Propellers (1.0mm Shaft)
Camera: C02 Micro Camera
Receiver Option: Frsky XM / Futaba S-FHSS / TBS Crossfire / ELRS 2.4G
VTX: Integrates 25mW VTX / M03 25-350mW VTX (only for ELRS 2.4G version)
Battery: BT2.0 450mAh 1S 30C Battery
Flight time: 3-4min

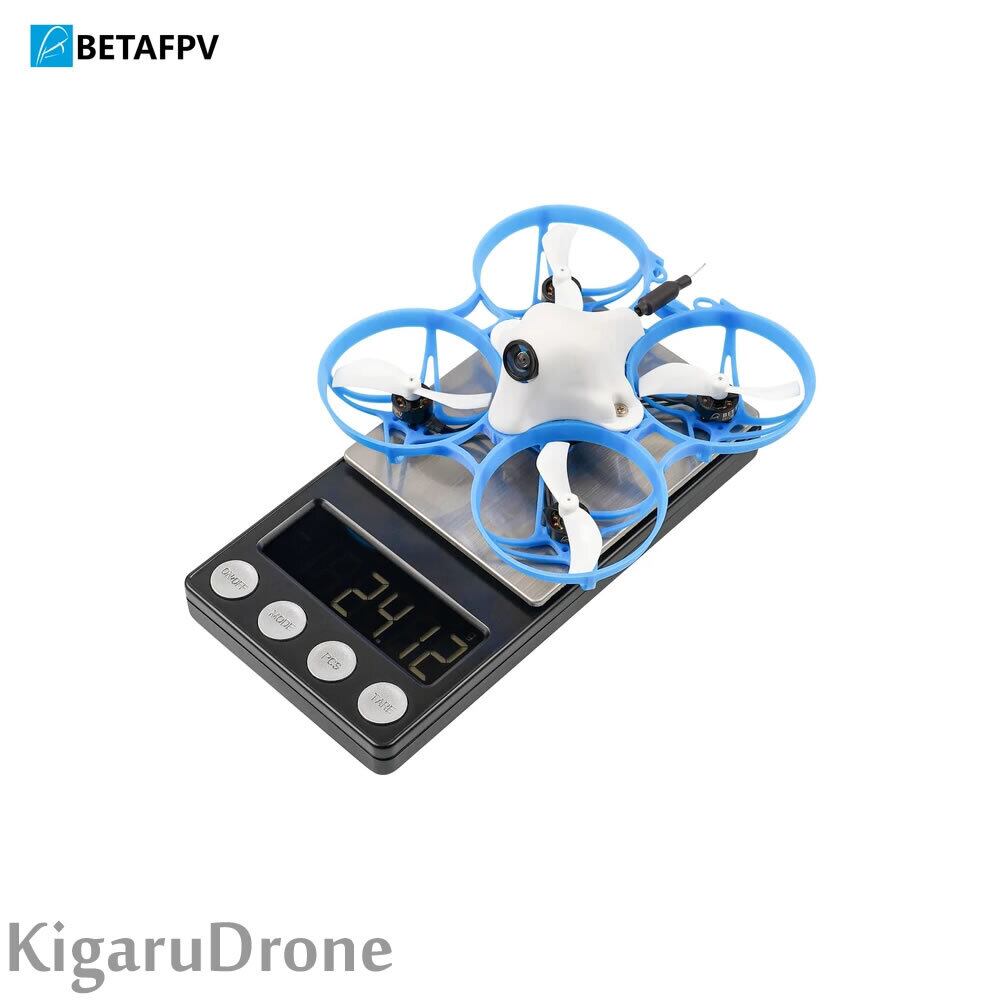

Weight (Without Battery): 29.3g / 24.0g (ELRS 2.4G)
Flight Controller
We used to use the classical F4 1-2S AIO Brushless FC on the Meteor75 drone. Why not the lighter F4 1S AIO FC board? Updated with the new FC, which integrates the 25mW VTX, no need for soldering, easy to install. Meanwhile, it supports external receivers like TBS Crossfire, Frsky XM+ and Spectrum DSMX etc.
njection Molded Canopy
Since Meteor75 whoop drone, we will use an injection molded canopy, which is only 1.5g with a camera holder. Of course, much durable than the original canopy.
Comes with a super Mini 5.8GHz FPV Transmitter + 800TVL C02 Camera+ RG178 Antenna, features 6 bands and 37 channels on the 5.8GHz band with Raceband, perfect for Meteor75.
Motors
1102 18000KV motors have a great balance between weight and power on this tiny 75mm 1S whoop drones. Only 2.9g with connectors. With the high 18000KV value, it could have a great punch power even only 1S battery. Also, it adopts PCB connector to allow you to repair it easier once cables disconnected.
Package
1 * Meteor75 Brushless Whoop Quadcopter (1S)
2 * 450mAh 1S 30C Battery with BT2.0 connector
1 * Customized Carry Case
1 * Spare 40mm 3-blade props (1.5mm Shaft) / Spare 40mm 2-Blade props (1.0mm Shaft)
1 * Screwdriver
系統図
日本語マニュアル
